Model HF-3600E-MODTCP Black 13.56 MHz HF RFID Reader

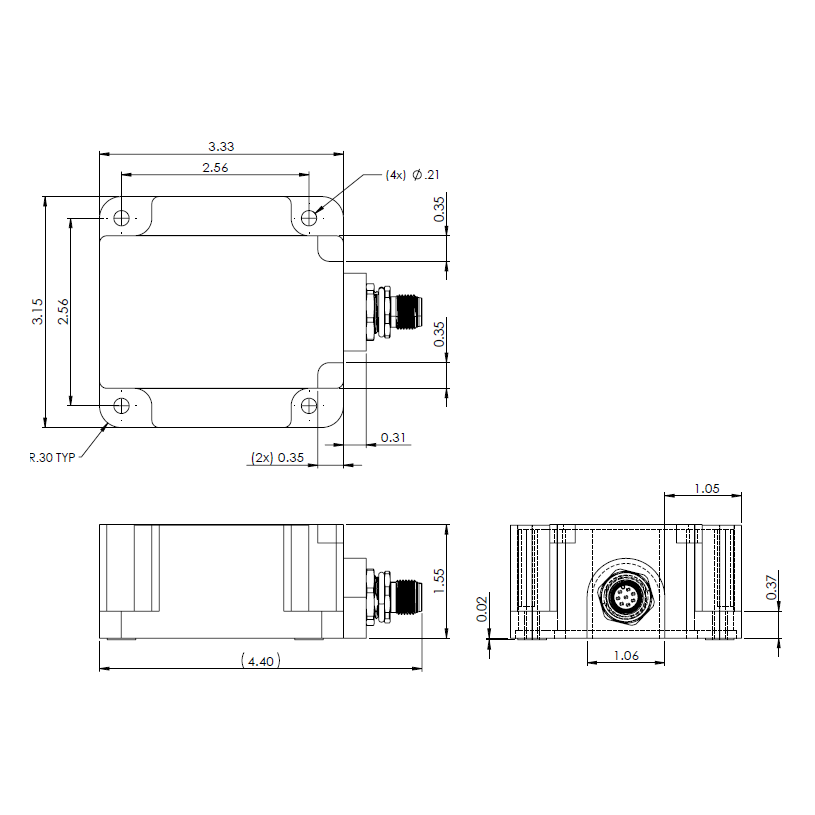

Model-HF-3600E-Drawing-02
Model HF -3600E Drawings
13.56 MHZ HF RFID READER - FACTORY FLOOR SERIES

Model HF-3600E-EIP

Part Number: 830-8040-00M128PM
Model HF-3600E-EIP 13.56 MHz HF RFID Reader
Frequency:
13.56 MHz HF
Connector:
8-pin Male, RJ45
Antenna:
Internal
Protocol:
EthenNet / IP
Standards:
ISO 15693 & ISO 14443
Processor:
On-Board Standard
List Price:

$1,199.00

USD - Contact for volume pricing.
Datasheet Downloads:
HF -3600E-EIP
HF 13.56 MHz Product Line
Volume Pricing:
Request bulk quote for this product:

Key Features & Specs:

Electrical:
Electrical:
Frequency:
13.56 MHz High Frequency
Operating Voltage:
9 - 28vdc
Current Consumption:
≤ 150 mA
Output Type:
EtherNet / IP

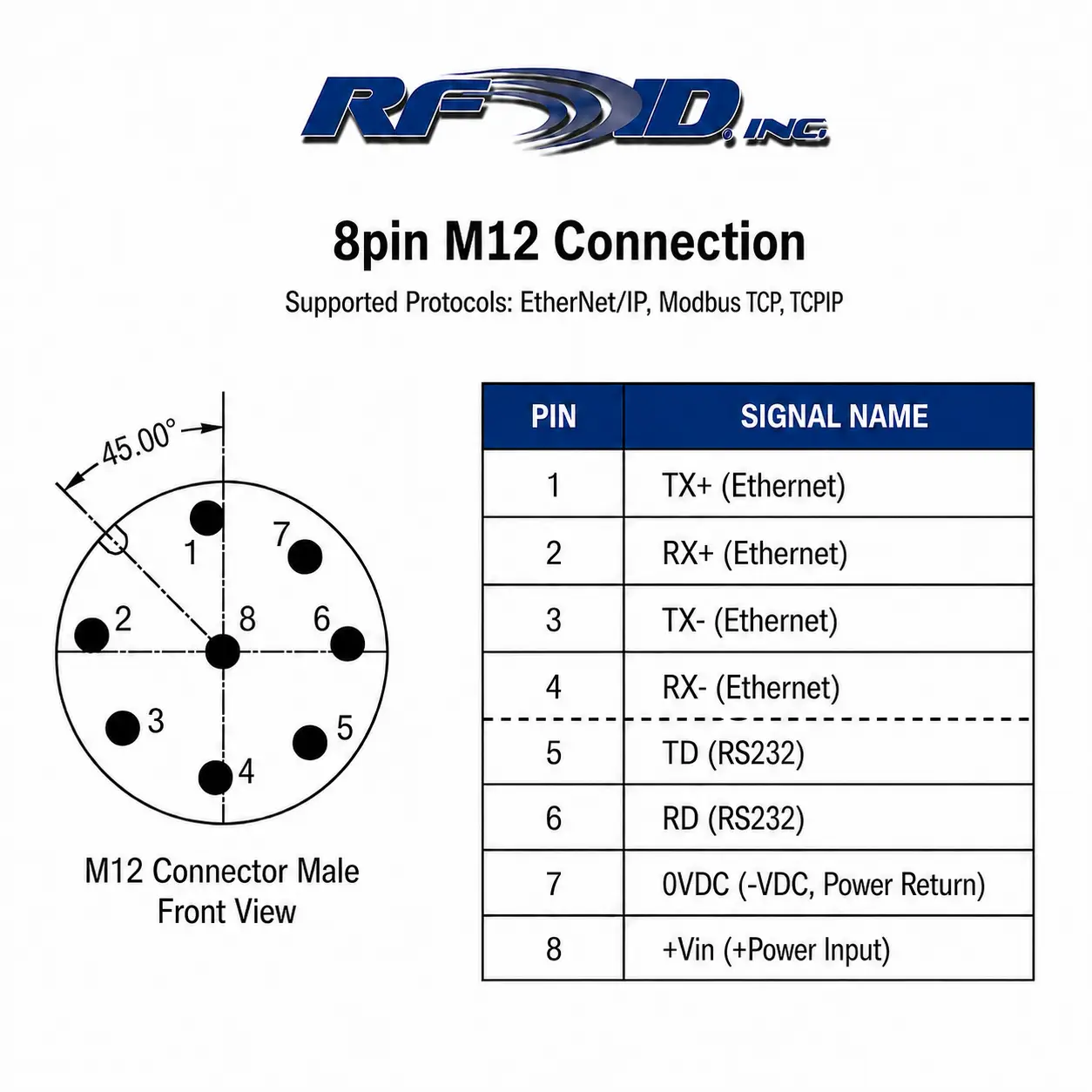

Connector:
M12 Male 8-pin; RJ45.
Mechanical:
Electrical:
Housing Material:
PBT
IP Rating:
IP67
Operating Temp:
-25°C to +85°C
Storage Temp:
-25°C to +85°C
Mounting:
RFID Performance:
Electrical:
Supported Standards:
ISO 15693, ISO 14443
Read Range:
45mm - 90mm (tag-dependent)
Read / Write:
Yes, w/optional Tag Present notification
Antenna:
Internal, integrated
Processor:
On-board Standard.
Certification & Complaince:
Electrical:
Certifications:
RoHS III REACH; CE; FCC Part 15 & ETSI; SIL2; Free of BBP, DEHP, DBP, DIBP; EN 60068-2-27 Shock; EN 60068-2-32 Drop; EN 60068-2-6 Vibration.
Network Protocol:
EtherNet/IP
LED Indicators:
Power, Read, Network Status.
Part Number:
830-8040-00M128PM
Warrenty:
1 Year.
