Model W6154M-HT Weldable Metal Mount High Temp 400C Tag, 61x54x17mm, UHF 902-928 MHz passive RFID - RFID Inc

Login / Sign Up

List Price:

$44.00

USD - Contact for volume pricing.

In stock

In stock

Volume Pricing:

915 MHz High Temp Passive Tag Series.

Model W6154M-HT

Part Number: 807-0016-W6154M-HT

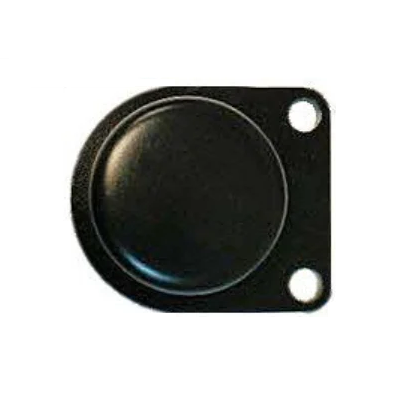

Model W6154M-HT Weldable Metal Mount High Temp 400C Tag, 61x54x17mm, UHF 902-928 MHz passive RFID Tag.

Frequency:

915 MHz UHF

Power:

Passive (no battery)

Standards:

ISO 18000-6C

EPC Class1 Gen2

Read Range (on metal):

4'-5' (Antenna dependent)

Peak Temperature:

+400°С (+752°F) for 1 hour

Certifications:

RoHS III, REACH, CE, FCC Part 15, ETSO, ATEX compliant, SIL2, Free of BBP, DEHP, DBP, DIBP.

Downloads:

Key Features & Specs:

Mechanical:

Electrical:

Measurements:

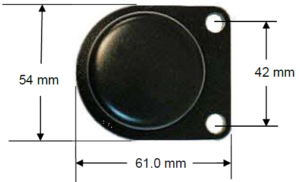

61x54x17mm / 2.4”x2.1”x.67”

Weight:

56.7 grams / 2 ounces

Housing Materials:

Steel sheel / Ceramic

Chip Options:

TID 32 to 208 bits / EPC – 0 to 496 bits

Environmental:

Electrical:

Temp, Peak:

+400°С (+552°F) for 1 hour

Temp, Operating:

-46°C to +85°C / -50°F to +185°F

Life:

40 Year Shelf Life / 100k write

IP Rating:

IP68

RFID Performance:

Electrical:

Frequency:

915 MHz Ulta High Frequency

Read Range:

4'-5' (antenna dependent)

Chip:

NXP UCODE 8: TID – 96 bits / EPC – 128 bits

Power:

Passive (no battery)

Certification & Complaince:

Electrical:

Standards:

EPC Class1 Gen2; ISO 18000-6C

Certifications:

RoHS III, REACH, CE, FCC Part 15 & ETSI, ATEX Approved, SIL. Free of BBP, DEHP, DBP, DIBP.

Warrenty:

1 Year.
