125 KHz LF RFID READER - FACTORY FLOOR SERIES
Model LF-3600E-ModTCP
Part Number: 802-8080-00M128PM
The Model HF-3600E-EIP 13.56 MHz HF RFID Reader with onboard standard processor and internal antenna. It features an 8-pin male and an RJ45 port.
Frequency:
125 KHz LF
Connector:
8-pin Male, RJ45
Antenna:
Internal
Protocol:
ModTCP
Standards:
ISO 15693 & ISO 14443
Processor:
Onboard Standard
List Price:
$1,199.00
USD - Contact for volume pricing.
Downloads:
Volume Pricing:
Key Features & Specs:
Electrical:
Electrical:
Frequency:
125 KHz LF
Operating Voltage:
9-28vdc
Current Consumption:
≤ 150 mA
Output Type:
Modbus TCP
Connector:
8-pin Male
Mechanical:
Electrical:
Housing Material:
PBT
IP Rating:
IP67
Operating Temp:
-25°C to +85°C / -13°F to +185°F
Storage Temp:
-25°C to +85°C / -13°F to +185°F
Mounting:
RFID Performance:
Electrical:
Supported Standards:
ISO 15693, ISO 14443
Read Range:
Up to 50mm (tag-dependent)
Read / Write:
Yes, w/optional Tag Present notification
Antenna:
Internal, integrated
Processor:
Onboard Standard.
Certification & Complaince:
Electrical:
Certifications:
RoHS III REACH; CE; FCC Part 15 & ETSI; SIL2; Free of BBP, DEHP, DBP, DIBP; EN 60068-2-27 Shock; EN 60068-2-32 Drop; EN 60068-2-6 Vibration.
Network Protocol:
ModTCP
LED Indicators:
Power, Read, Network Status.
Part Number:
802-8080-00M128PM
Warrenty:
1 Year.

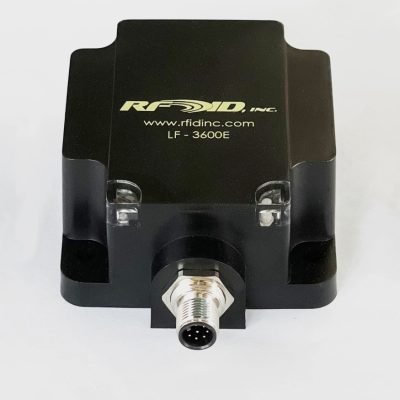

Model LF-3600E-ModTCP 125 KHz LF RFID Reader with:
- Onboard Processor;
- internal Antenna;
- 8pin M12 connector.
