Model HF-3600E-MODTCP Black 13.56 MHz HF RFID Reader

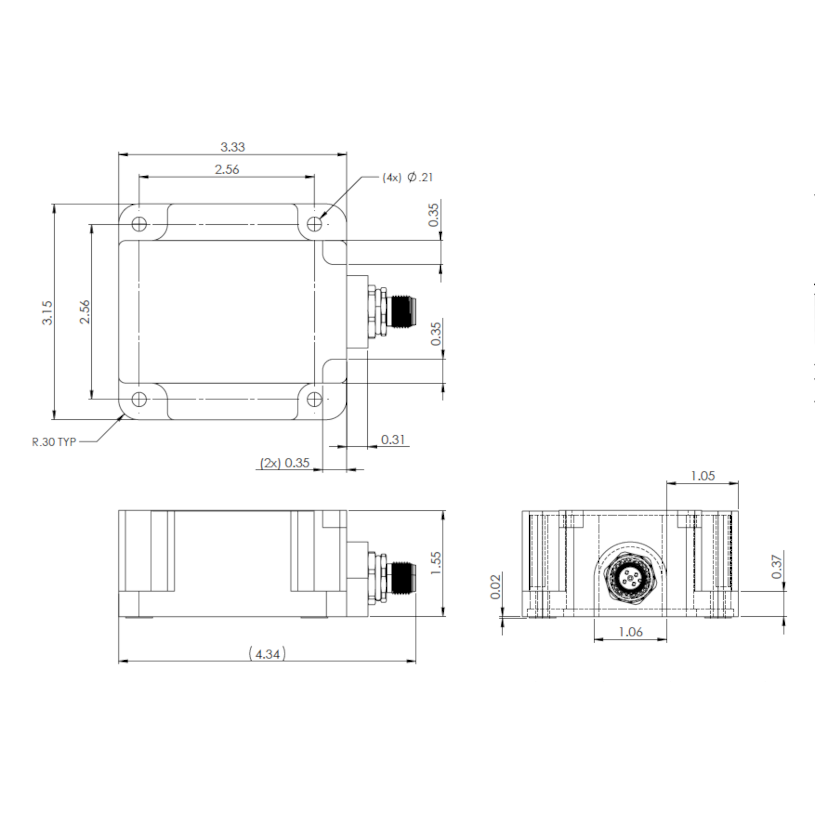

Model-HF-3600E-Drawing-02
Model HF -3600E Drawings
125 KHz LF RFID READER - FACTORY FLOOR SERIES

Model LF-3600E-IOLINK

Part Number: 802-8060-00M128PM
Model LF-3600E-IOLINK 125 KHz LF RFID Reader
Frequency:
125 KHz LF
Connector:
4-pin Male
Antenna:
Internal
Protocol:
IOLINK
Standards:
ISO 15693 & ISO 14443
Processor:
On-Board Standard
List Price:

$695.00

USD - Contact for volume pricing.
Datasheet Downloads:
LF -3600E-IOLINK
LF 125 KHz Product Line
Volume Pricing:
Request bulk quote for this product:

Key Features & Specs:

Electrical:
Electrical:
Frequency:
125 KHz LF
Operating Voltage:
9 - 28vdc
Current Consumption:
≤ 150 mA
Output Type:
IOLINK
Connector:
4-pin Male
Mechanical:
Electrical:
Housing Material:
PBT
IP Rating:
IP67
Operating Temp:
-25°C to +85°C / -13°F to +185°F
Storage Temp:
-25°C to +85°C / -13°F to +185°F
Mounting:
RFID Performance:
Electrical:
Supported Standards:
ISO 15693, ISO 14443
Read Range:
45mm - 90mm (tag-dependent)
Read / Write:
Yes, w/optional Tag Present notification
Antenna:
Internal, integrated
Processor:
On-board Standard.
Certification & Complaince:
Electrical:
Certifications:
RoHS III REACH; CE; FCC Part 15 & ETSI; Atex Compliant, SIL2; Free of BBP, DEHP, DBP, DIBP; EN 60068-2-27 Shock; EN 60068-2-32 Drop; EN 60068-2-6 Vibration
Network Protocol:
IOLINK
LED Indicators:
Power, Read, Network Status.
Part Number:
802-8060-00M128PM
Warrenty:
1 Year.
