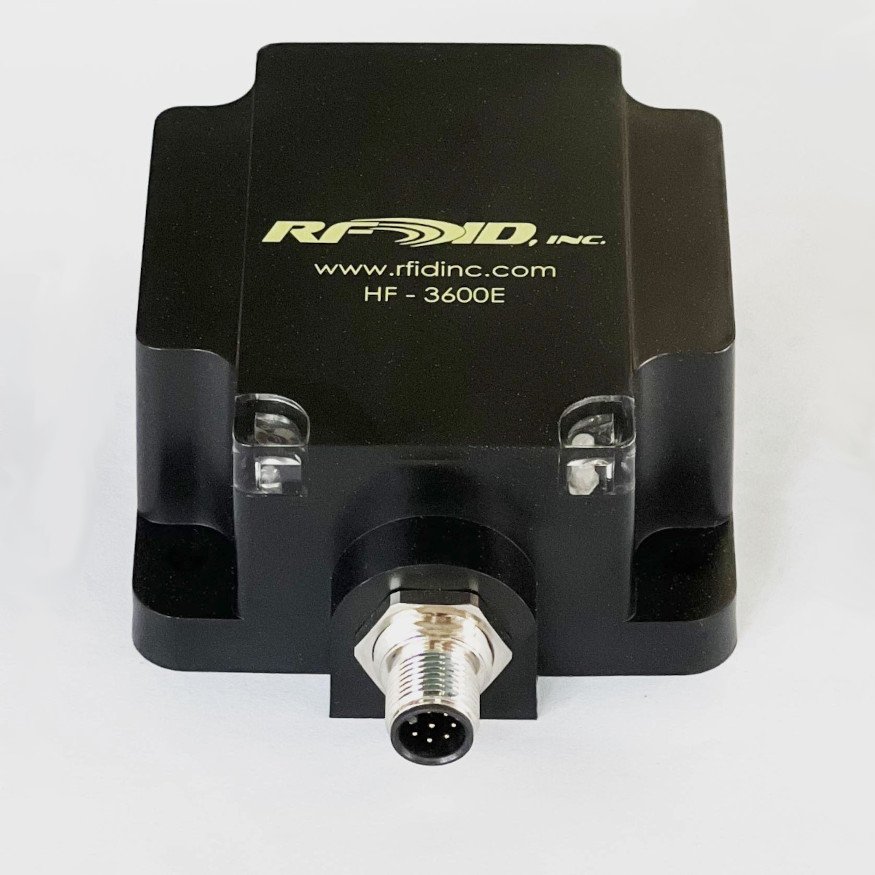

Model HF-3600E-MODTCP Black 13.56 MHz HF RFID Reader
Model-HF-3600E-Drawing-02

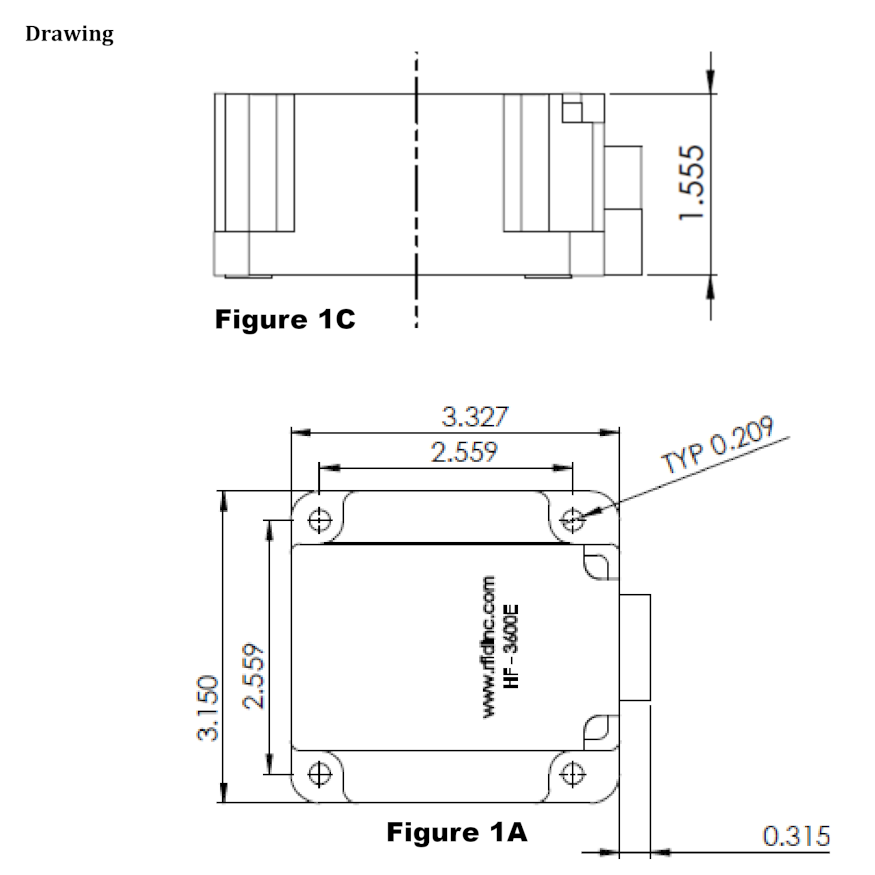

Model HF -3600E Drawings
13.56 MHZ HF RFID READER - FACTORY FLOOR SERIES

Model HF-3600E-EIP

Part Number: 830-8040-00M128PM
Model HF-3600E-EIP 13.56 MHz HF RFID Reader
Frequency:
13.56 MHz HF
Connector:
8-pin Male, RJ45
Antenna:
Internal
Protocol:
EthenNet / IP
Standards:
ISO 15693 & ISO 14443
Processor:
On-Board Standard
List Price:

$695.00

USD - Contact for volume pricing.
Datasheet Downloads:
HF -3600E-EIP
HF 13.56 MHz Product Line
Volume Pricing:
Request bulk quote for this product:

Key Features & Specs:

Electrical:
Electrical:
Frequency:
13.56 MHz HF
Operating Voltage:
10-30 VDC
Current Consumption:
≤ 250 mA
Output Type:
EtherNet / IP (Modbus TCP)
Connector:
8-pin Male, RJ45
Mechanical:
Electrical:
Housing Material:
High-impact ABS
IP Rating:
IP67
Operating Temp:
-10°C to +60°C
Storage Temp:
-25°C to +70°C
Mounting:
Panel / DIN rail compatible
RFID Performance:
Electrical:
Supported Standards:
ISO 15693, ISO 14443
Read Range:
Up to 120mm (tag-dependent)
Read / Write Speed:
High-speed, Multi-tag capable
Antenna:
Internal, integrated
Processor:
On-board Standard.
Certification & Complaince:
Electrical:
Certifications:
CE, FCC, UL Listed
Network Protocol:
EtherNet/IP (CIP)
LED Indicators:
Power, Read, Network Status.
Part Number:
830-8040-00M128PM
Warrenty:
2 Years.
